Adding Spotlights to MGTF - wiring help needed pretty please!

Hi so I have read the "How to's" on the front fog lights... and I must say that I can't quite work out where the only two cables that I have left, are meant to attach to lol This is mainly due to the fact that the whole loom I purchased came with its own in-line fuse, fog light button & connector etc, so I really only need connect the two wires to goodness knows what two wires lol...any ideas at all? (Sorry to be a complete pain)!!

I gather you got this lot second hand, hence the lack of instructions.
So I give you my  best educated guess, as when these things are second hand, who knows what exactly the previous owner got up to.

Those remaining two wires......is one the black/white trace wire with the eye terminal? and does that wire come from the multi pin terminal plug that connects to the relay?
If so that needs to be earthed.
As for the other, it that the red/white wire with the end stripped? and does that come from the fuse holder? and does the other wire from the fuse holder go to the terminal plug of the relay?
If so that stripped wire needs to connect with a live source of power.

The green plug with the coloured wires should probably go to the switch.
You also seem to have some stray bits of coloured wire and another green plug with some black wires hanging out of it, these I suspect are just left over bits that were unused and as such could probably be discarded.... but not yet! Wait until the project is completed and working.

There is obviously more to this than included in the pix, I assume you had no difficulty figuring out where all this went but please feel free to make further enquiries if needed.


Goof response.



These wires?

As Cobber says red wire - permanent live and black wire -  permanent earth.
Looking at the connectors, they are probably intended for attaching to the battery terminals.

Thank you SO VERY MUCH for the responses so far - at last I don't feel alone in all of this !!

OK so I have attached a few more pictures... I have worked out the the wires and green connector that I figured were 'spare' are in fact for the connector to the rear of the fog light switch! My question with all of this is, does anyone know in what order they are supposed to be going along/clicked inside of the green connector, or if in fact it makes difference? The second Question is; where do each of the ends of these wires go/get joined to?!



My next (and easy) question is - I presume this is purely an earth that comes from the start of the loom near the actual fogs, that I can earth to anywhere on the body?

OK so moving onto the next couple of pics and Questions (lol!).. you will see that from the loom itself, I have two units that come off from it.. one I presume (to the right in the oic) is a transformer of some kind?! and the one to left of the pic (with 'AD' written at the top) is an in-line fuse? So both the BLACK and white and also the RED and white wires pictured in the last pic (with connectors already on them) both come through the transformer, through the in-line fuse... so I presume these are positive and negative wires? In which case any ideas what they should be going into?  BUT also, wher eon earth does the green connector go to?! Its only got a RED and a BLUE wire going into it, and these come from the loom that goes thorugh the transformer also....Thanks so so much - i'd love to get this sorted



Just glancing at the photographs & the format of the green connector, my guess is just as David & Cobb’s intimated: red, via the fuse holder, positive, black, negative & the green is the switch plug. There is a relay illustrated, is that with the kit, or just hanging about?
The spot/fogs are usually enabled by a positive from the head lamps, this is to prevent them being used without the head lamps being on.
Hence a relay. The switch wiring will include switch illumination when the side lights are on. The feed for warning light on the dash should link in to the loom at some point but as my supplementary illumination is custom I’m unable to help there, other than to assume it’s in the standard loom it integrates by design as you link the rest of the kit in.
I don’t recall there being any spot information on the wiring diagram & as I’m away I can only view it on my phone. Not good at all!
Is there not a diagram supplied?
M

Yes the order of the connections to the plug is important this is called the pinout. Exactly what that order is I can't tell you right now.
I'll need some time.
The small cube like black box you refer to as the unit is actually the relay, this device acts as an electrically operated switch, it saves having to run all the current required for the lights through the switch which would wear out the contacts of the switch in no time, it is good practice to use these.
Yet again I'll need a little time to come up with what goes where and the same for the  rear fogs which I didn't realise you were also fitting.
So to some up you seem to need help with all the wires not just the two mentioned in your earlier posts.....yeah?

Again absolute brilliant responses so thank you so much for this guys, I really do appreciate it.

SO Cobber sir - no only fitting from spotlights thats all. It was a wiring loom 'kit' that I purchased from ebay as I thought it would be 'simple' to fit lol OOPS!

No kind of instructions sadly and so I am rather blind and I can't get hold of the seller and tbf I had purchased these ages ago. The fact I now have the whole dash out, I really can't be bothered to put it all back together until I can get these bloomin' spots/fogs wired in lol

Thank you for the rely info thats all really interesting.

I shall await for all of your response on what to do next then. I presume with all the wires (the 5 from the back of the green switch connector) and the positive and negative, all need to be directly attached/piggybacked into ones currently in the main car loom that spreads off to all other switches etc?! I will wait patiently until you guys basically tell me what to do, because I am so so lost with this and again, i'm really thankful for all of your help

Having consulted both the Boy's Own Big Blue Book of the MGTF  and the Boy's Own Big Books of the MGF  (otherwise known as the workshop manuals) which are down loadable from the library section of this site, you are in for a world of pain! I'm aware that your car is a TF but I looked at the F manuals (theres 2 of them) anyway as the 2 models have different wiring, and I thought you might have the kit for the F instead of the TF.

The factory set up is quite complicated and runs through the Body ECU which may require activating.

What you have dosen't look like a factory fog light kit as the wiring colours are wrong, and the rear fog light switch connector plug is the wrong colour (it should be blue) so I suspect you have some sort of aftermarket kit which may not require connecting to the Body ECU, which might be a good thing.......BUT and it's a very big but, bigger than a fat man's arse!
Is that from my vantage point on the other side of the world I can't see and feel exactly what you have got in your hot little hands!
Were it was sitting here in front of me I'd be able to figure it out PDQ (pretty damned quick)
Are they actually fog lights or driving/spot lights? There is a huge difference between the functions  and applications of the two, the terms are often mistakenly interchanged.
Maybe you should post some pix of the lights themselves, so as we might be able to say what you have.

It was kind of Ol' Mate from Ebay to sell you that kit without any destuctions!
Maybe someone on here has dealt with one of Ol' mates kits before, if so hopefully they can enlighten us as to how it's meant to go.

I'm sorry but I can't really be of much help, If the car was here I could rig up the wiring in any number of ways to get it working but that would involve a bit of trial and error.
I will however on your behalf ask my tame auto electrician mate for his thoughts on the matter, though I suspect he will echo what I've said. And I never know when he will darken my door step. So it might take a while.

So you are going to need to enlist some local help, maybe if you posted your appoximate location on here, there might be a menber with the skill set to help nearby. Failing that you might need to handball it to an auto elecrician to nut it out.

Hi Cobber.  They are the actual standard MGTF Front Spotlights that fit at the bottom of the front bumper.

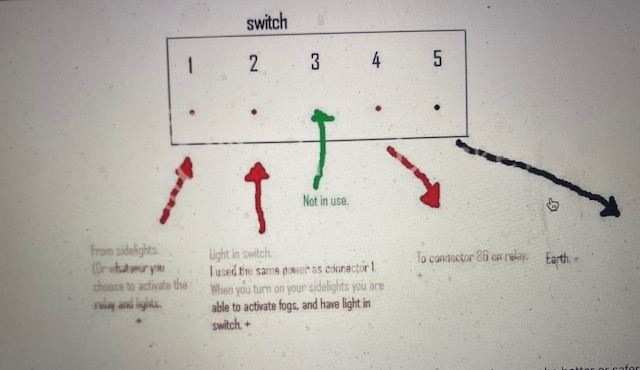

I did manage to find the following diagram online which I presume I can use as the correct guide to place the wires into the back of the green connector to place into the spotlight switch?  The question would then be what wires from the main loom I piggyback them into?  Also where the two separate wires connect to also that are coming from my kit loom? I will take a pic of the main loom in the car to see if that would help you to (hopefully!) help me work out which wires are which
