Cylinder head bolts inspection
1 .Retain bolts in fitted order
2. Wash all bolt, wipe dry and lightly oil threads
Cylinder head bolts may be re-used provided they pass one of the following tests.
Test with cylinder head removed
1. Carefully enter head bolts in their original fitted location, DO NOT DROP. Screw each bolt by hand into oil rail.

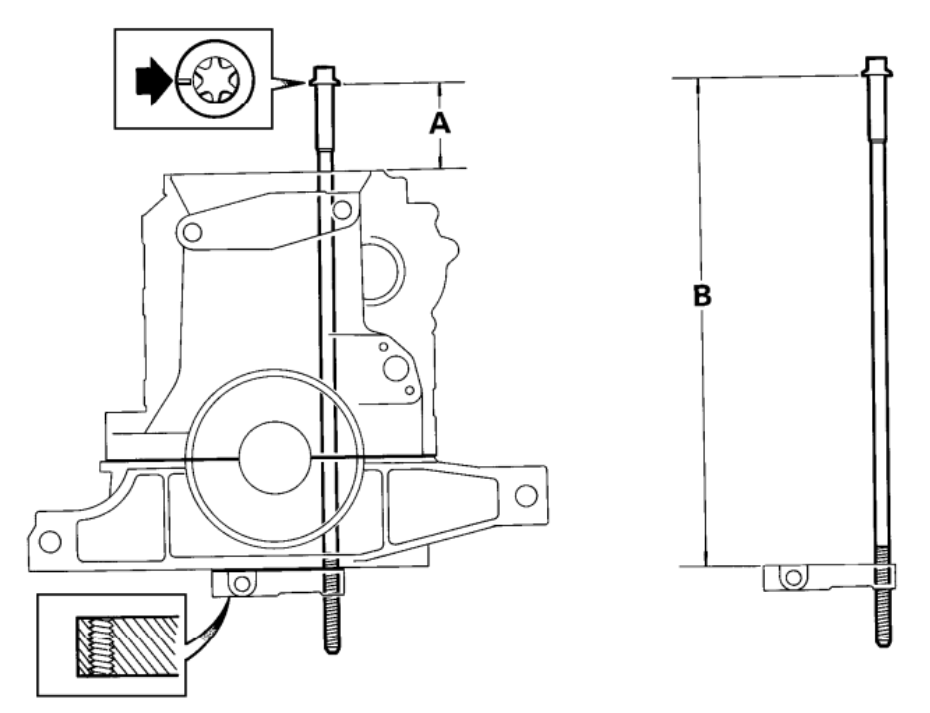

2. Measure distance from cylinder block face to under bolt head “A” in ilustration:
97 mm or less. Bolt may be re-used.
Over 97 mm. New bolt must be used.
Test with oil rail removed
1. Ensuring cylinder head bolts are in their
original fitted location. Screw each bolt by hand into oil rail.
2. If full length of thread is engaged. Bolt may be re-used.
3. If full length of thread is not engages, measure distance from top face of oil rail to under bo;t head “B” in ilustration:
378 mm or less. bolt may be re-used.
Over 378 mm. New bolt must be used.
