tf oil clock led change :) how to :) 12 years 2 months ago #37620

i purchased a TF clock and oil temp gauge for my f to do blue led back light

any way read the attached how to and made a discovery that you don't need to put any resistors on the clock or oil gauge as they already have them on (i just traced the circuit with a DMM)

if you use LED'S with 30mA max current then you will be fine

so here is the proof





the 475 ohm resistor on the pcb for the original LEDs (clock)






LEDs fitted 3mm 30mA 30deg angle 3000mlcd





LEDs working on 13.5v supply







here is the oil gauge resistor







here is the LEDs fitted (same as the clock) and polarity of the LEDs







here is the LEDs fitted (same as the clock)





so there you have it just solder the LEDs the correct way round so no more fiddly fitting the resistor

hope this helps

mark
mad about cars and bikes :)
if it aint broke dont fix it :)

Please Log in to join the conversation.

Re: tf oil clock led change :) how to :) 12 years 2 months ago #37621

and if you want to add a red pointer here is the photos to help
if you have a close look you will see where to solder the led to and the reistor
i used a 1.2k

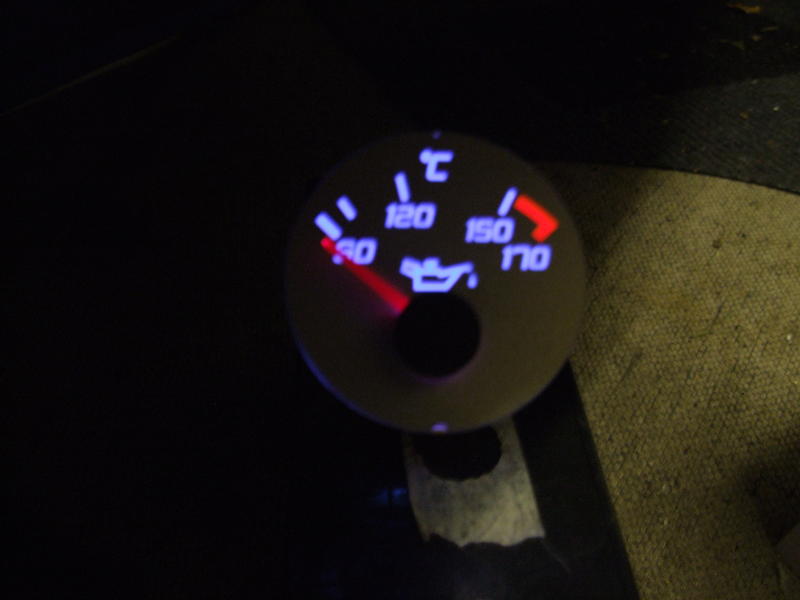

and here is the result





leds used
from Farnell (off the website)
blue 3mm 1716703 16p each
red 3mm 1716697 15p each
1k resistor 1700237 35p for 50

green lesd 3mm 1716704 20p each

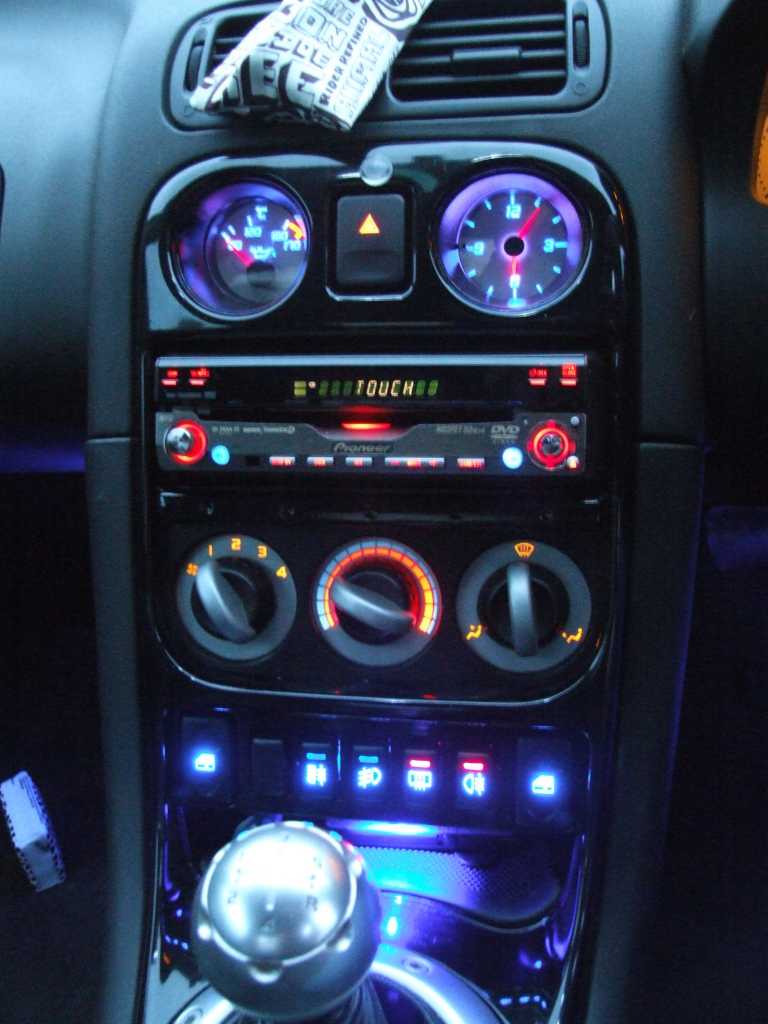

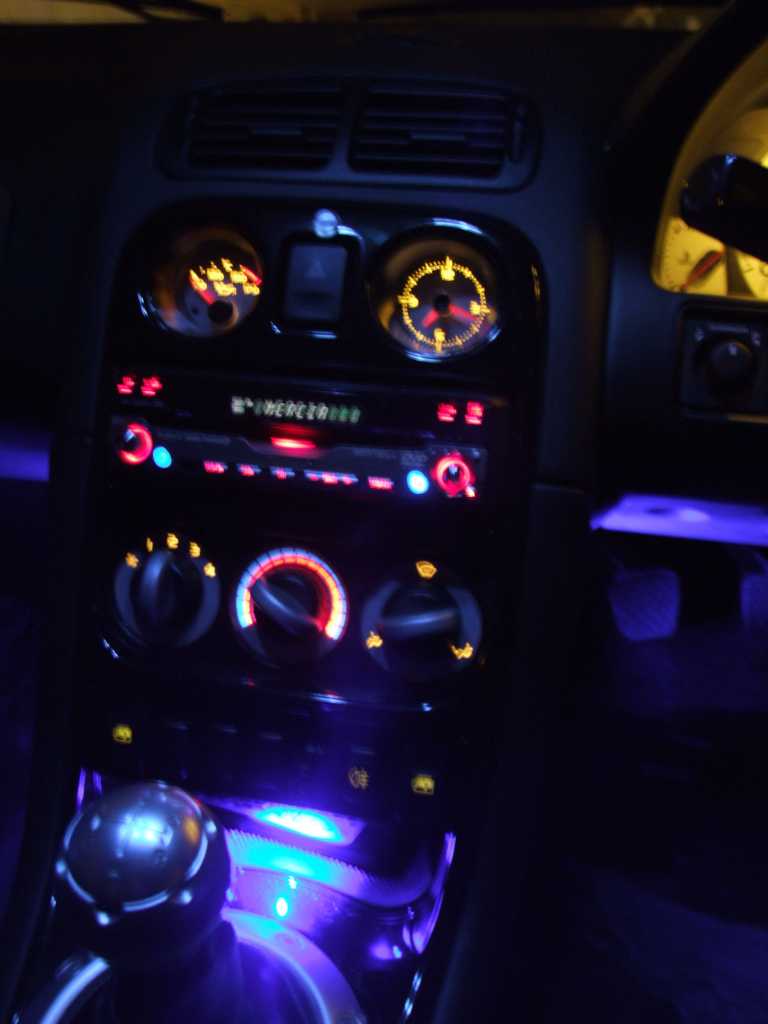

just found this photo of my clocks in my old car and converted switches





mad about cars and bikes :)
if it aint broke dont fix it :)
The following user(s) said Thank You: rog1963, PQD44, Leigh Ping

Please Log in to join the conversation.

Last edit: Post by Leigh Ping.

Re: tf oil clock led change :) how to :) 12 years 2 months ago #37622

  • psymon's Avatar
  • psymon
  • Offline
  • Administrator
  • Administrator
  • 2001 MGF 1.8 in MNX
  • Posts: 3634
  • Thanks: 1086
Nice, Thank goodness for decent size pads to solder on to. :broon:

Please Log in to join the conversation.

Re: tf oil clock led change :) how to :) 12 years 2 months ago #37657

Looks great way brighter than mine do.

I'm a chicken I just put new blue bulbs in.

Please Log in to join the conversation.

Re: tf oil clock led change :) how to :) 12 years 2 months ago #37666

been doing them for peeps for a couple of years also do some bits on the stra forum :)
mad about cars and bikes :)
if it aint broke dont fix it :)

Please Log in to join the conversation.

Re: tf oil clock led change :) how to :) 12 years 2 months ago #37667

  • 's Avatar
  • Visitor
  • Visitor
Hmmmmmmmmmmm :evil:

You can do the How too on an F next week :P

Thank you for the marvelous champagne xxx
