MG F/TF Fuse & Relay Listing
MG F mk1, mk2, MG TF mk1
_________________________________
The majority of the fuses are mounted in three fuse boxes:
In addition to the fuse boxes, in-line fuses are installed:
FUSE COLORS
MG-F MK1 UNDER BONNET FUSE BOX
MG-F MK1 PASSANGER COMPARTMENT AND SATELLITE FUSE BOXES
(RHD is shown, while LHD is simmilar)
MG-F MK2 & MG-TF MK1 UNDER BONNET FUSE BOX
MG-F MK2 & MG-TF MK1 PASSANGER COMPARTMENT AND SATELLITE FUSE BOXES
(RHD is shown, while LHD is simmilar)
EM-CVT FUSE
ALTERNATOR FUSE (MGF 2001 Model Year and after)
ADDITIONAL RELAYS
.
_________________________________
The majority of the fuses are mounted in three fuse boxes:
- Under bonnet fuse box - attached to the LH inner front wing
- Passenger compartment fuse box - installed behind a fuse box closing panel on the driver’s side of the fascia;
- Satellite fuse box attached to the side of the passenger compartment fuse box.
In addition to the fuse boxes, in-line fuses are installed:
- Near the under bonnet fuse box, for the Electric Power Assisted Steering (EPAS) system.
- Behind the LH side trim of the luggage compartment, for the Electro Mechanical Constantly Variable Transmission (EM-CVT), where fitted.
- On the side of the passenger compartment fuse box, for the SRS system.
- Behined driver side of facia, fuse for alternator
FUSE COLORS
MG-F MK1 UNDER BONNET FUSE BOX

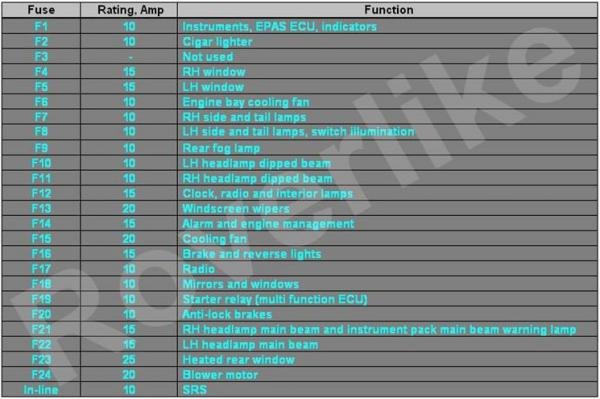

MG-F MK1 PASSANGER COMPARTMENT AND SATELLITE FUSE BOXES
(RHD is shown, while LHD is simmilar)
MG-F MK2 & MG-TF MK1 UNDER BONNET FUSE BOX

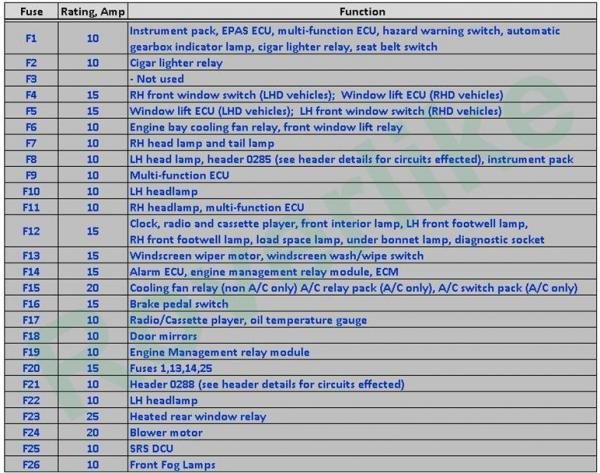

MG-F MK2 & MG-TF MK1 PASSANGER COMPARTMENT AND SATELLITE FUSE BOXES
(RHD is shown, while LHD is simmilar)
EM-CVT FUSE
ALTERNATOR FUSE (MGF 2001 Model Year and after)
ADDITIONAL RELAYS
.
Last Edit:2 years 11 months ago
by Roverlike
Last edit: 2 years 11 months ago by Roverlike.
Please Log in or Create an account to join the conversation.
MG TF mk 2 (17 June 2003 VIN RD 620459 up to 2005)
MG Motor TF LE500, TF135, 85th Anniversary (2007 up to 2011) __________________________________________________________________________
The majority of the fuses are mounted in two fuse boxes:
In addition to the fuse boxes, in-line fuses are installed:
MINI BLADE FUSE COLORS
UNDER BONNET FUSE BOX
PASSANGER COMPARTMENT FUSE BOX
(RHD is shown, while LHD is simmilar)
MG TF mk2 FUSE LIST
MG Motor TF LE500, TF135, 85th Anniversary FUSE LIST
All relays in passenger compartment fuse box for MG TF 2003 onwards are the same part number YWB000440:
EM-CVT FUSE
ALTERNATOR FUSE
MG TF mk2 ADDITIONAL RELAYS
How to determine which relay is for which purpose nevertheless of the position of single and double relay?
Single relay is always Starter relay.
Double relay is Fuel pump relay and ECM relay.
You can check relay purpose from wire colours below them. Number provided before wire colour is pin position.
Starter relay:
1 - Brown
2 - Brown/Red trace
3 - White/Red trace
5 - Bllack/White trace (non EMCVT) or Black/Red trace (EMCVT)
Fuel pump relay:
6 - Brown/Grey trace
7 - White/Purple trace
8 - White
10 - Black/Purple trace
ECM relay:
1 - Brown
2 - Brown/Pink trace
3 - White/Pink trace
5 - Brown
MG Motor TF LE500, TF135, 85th Anniversary ADDITIONAL RELAYS
How to determine which relay is for which purpose nevertheless of the position of single and double relay?
Single relays are Starter relay and Remote boot release relay.
Double relay is Fuel pump relay and ECM relay.
You can check relay purpose from wire colours below them. Number provided before wire colour is pin position.
Remote boot release relay:
1 - Brown
2 - Red
3 - Brown
5 - Bllack/White trace
Starter relay:
1 - Brown
2 - Brown/Red trace
3 - White/Red trace
5 - Bllack/White trace (non EMCVT) or Black/Red trace (EMCVT)
Fuel pump relay:
6 - Brown/Grey trace
7 - White/Purple trace
8 - White
10 - Black/Purple trace
ECM relay:
1 - Brown
2 - Brown/Pink trace
3 - White/Pink trace
5 - Brown
MG Motor TF LE500, TF135, 85th Anniversary PARKING AID
ADDITIONAL RELAYS ALL MODELS
.
MG Motor TF LE500, TF135, 85th Anniversary (2007 up to 2011) __________________________________________________________________________
The majority of the fuses are mounted in two fuse boxes:
- Under bonnet fuse box - attached to the LH inner front wing
- Passenger compartment fuse box - installed behind a fuse box closing panel on the driver’s side of the fascia;
In addition to the fuse boxes, in-line fuses are installed:
- Near the under bonnet fuse box, for the Electric Power Assisted Steering (EPAS) system.
- Behind the LH side trim of the luggage compartment, for the Electro Mechanical Constantly Variable Transmission (EM-CVT), where fitted.
- Behined driver side of facia, fuse for alternator
MINI BLADE FUSE COLORS
UNDER BONNET FUSE BOX
PASSANGER COMPARTMENT FUSE BOX
(RHD is shown, while LHD is simmilar)
MG TF mk2 FUSE LIST
MG Motor TF LE500, TF135, 85th Anniversary FUSE LIST

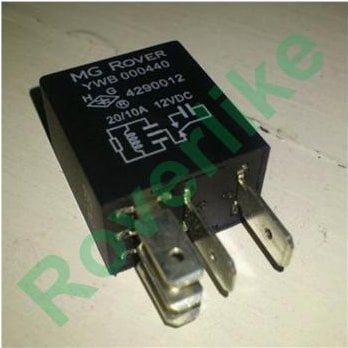

All relays in passenger compartment fuse box for MG TF 2003 onwards are the same part number YWB000440:
EM-CVT FUSE
ALTERNATOR FUSE
MG TF mk2 ADDITIONAL RELAYS
How to determine which relay is for which purpose nevertheless of the position of single and double relay?
Single relay is always Starter relay.
Double relay is Fuel pump relay and ECM relay.
You can check relay purpose from wire colours below them. Number provided before wire colour is pin position.
Starter relay:
1 - Brown
2 - Brown/Red trace
3 - White/Red trace
5 - Bllack/White trace (non EMCVT) or Black/Red trace (EMCVT)
Fuel pump relay:
6 - Brown/Grey trace
7 - White/Purple trace
8 - White
10 - Black/Purple trace
ECM relay:
1 - Brown
2 - Brown/Pink trace
3 - White/Pink trace
5 - Brown
MG Motor TF LE500, TF135, 85th Anniversary ADDITIONAL RELAYS
How to determine which relay is for which purpose nevertheless of the position of single and double relay?
Single relays are Starter relay and Remote boot release relay.
Double relay is Fuel pump relay and ECM relay.
You can check relay purpose from wire colours below them. Number provided before wire colour is pin position.
Remote boot release relay:
1 - Brown
2 - Red
3 - Brown
5 - Bllack/White trace
Starter relay:
1 - Brown
2 - Brown/Red trace
3 - White/Red trace
5 - Bllack/White trace (non EMCVT) or Black/Red trace (EMCVT)
Fuel pump relay:
6 - Brown/Grey trace
7 - White/Purple trace
8 - White
10 - Black/Purple trace
ECM relay:
1 - Brown
2 - Brown/Pink trace
3 - White/Pink trace
5 - Brown
MG Motor TF LE500, TF135, 85th Anniversary PARKING AID
ADDITIONAL RELAYS ALL MODELS
.
Last Edit:8 months 1 week ago
by Roverlike
Last edit: 8 months 1 week ago by Roverlike.
The following user(s) said Thank You: David Aiketgate, Cobber, Raccoon, sworkscooper, Airportable, Notanumber
